Drillable Cement Retainer With Mechanical Setting For Well Completion
Drillable Cement Retainer With Mechanical Setting For Well Completion
Şimdi başvurun

Drillable Cement Retainer With Mechanical Setting For Well Completion

Min sipariş miktarı : 1 Takım Fiyat : USD 1-10000/set
Ambalaj bilgileri : Pollywood Teslim süresi : 30-50 gün
Ödeme koşulları : L/C,T/T,D/P Yetenek temini : OEM / DOM
Menşe yeri: Çin Marka adı: ZZ TOP OIL TOOLS
Sertifika: ISO, API Model numarası: K1 çimento tutucusu

Detay Bilgi
Boyut Aralığı: 4 1/2 - 13 5/8 inç Çalışma Basıncı: 10000 psi
Bağlantı türü: IF, EUE, CAS Çalışma sıcaklığı: 400 oF'a kadar
Maksimum Basınç Değeri: 10000 psi Malzeme: İyi

Ürün Açıklaması

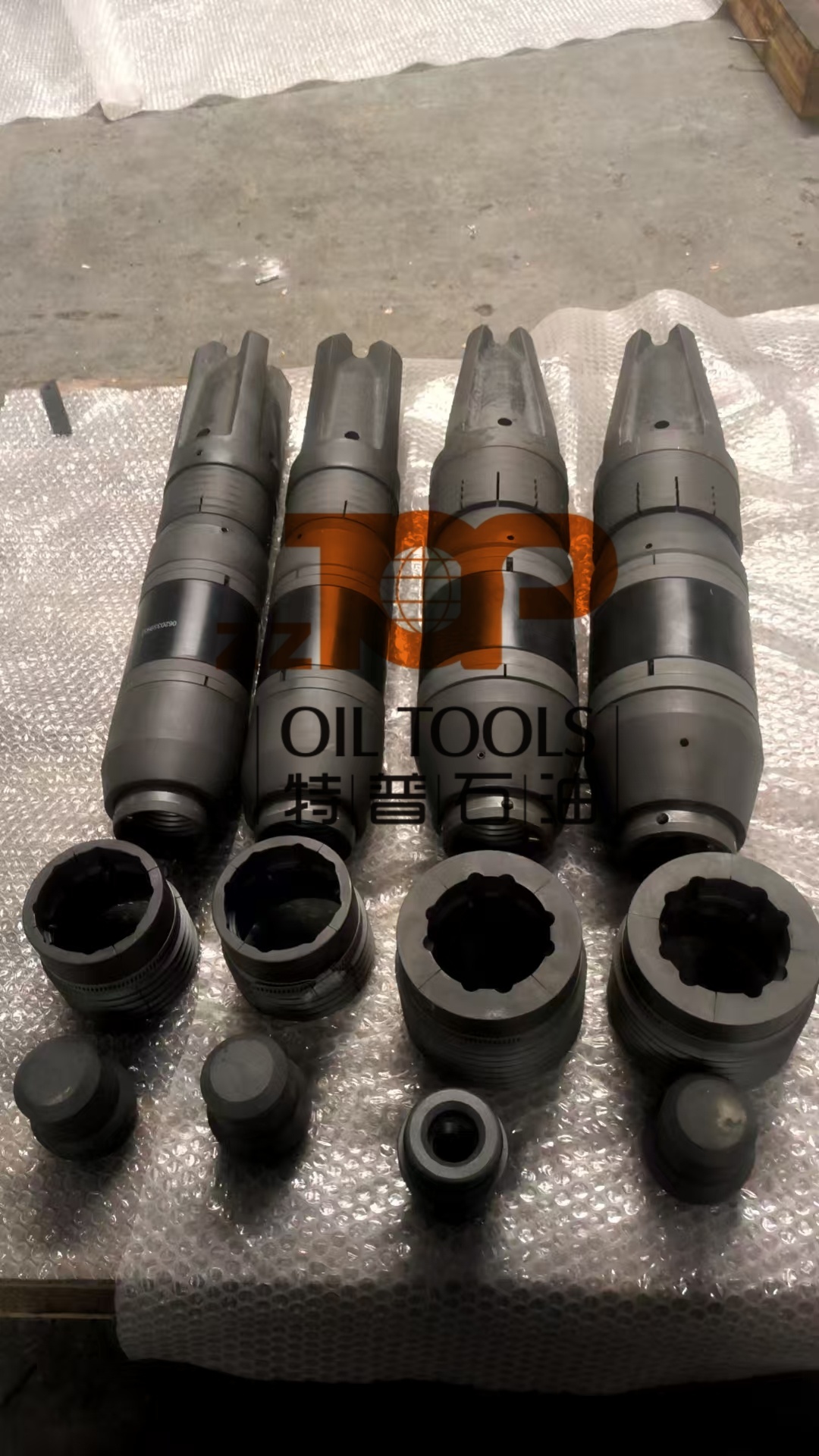

Drillable Cement Retainer With Mechanical Setting For Well Completion


The “K-1” Cement retainer is a high performance drillable cement Retainer ideal for most remedial cementing applications. The “K-1” was Designed to function as a drillable squeeze packer, after cementing, acts as a plug trapping squeeze pressure on the cement below the retainer and isolating the newly cemented area from the hydrostatic pressures above the cement retainer.


Features and Benefits:​

  • The cement retainer will be set securely in any hardness casing, including premium grades
  • The cement retainer consist of one-piece packing element and flat metal backup rings which combine for superior seal
  • This kind of cement retainer can be simply converted to wire line set cement retainer
  • The cement retainer easy to drill out since metal parts made from cast iron;

Specification of Drillable Cement Retainer


　 Casing OD
(in)		 Casing Weight
(lbs/ft)		 Setting Range
Min (in)		 Setting Range
Max (in)		 Max OD
(in)		 Max Pressure
Rating(PSI)
1 4.500 9.5-16.9 3.740 4.090 3.593 10,000
2 5.000 11.5-21.4 4.126 4.560 3.937
3 5.000 23.2-24.1 3.895 4.142 3.706
4 5.500 13-23 4.580 5.044 4.312
5 6.000 18-26 5.140 5.552 4.937
6 6.625 17-32 5.595 6.135 5.370
7 7.000 17-35 6.004 6.538 5.687
8 7.625 20-39 6.625 7.125 6.312
9 8.625 24-49 7.511 8.097 7.125
10 9.625 29.3-58.4 8.435 9.063 8.120 8,000
11 10.750 32.76-60.7 9.660 10.192 9.438
12 11.750 60-94 10.142 10.772 9.940 4,000
13 11.750 38-66.7 10.656 11.150 10.438
14 13.375 48-85 12.159 12.715 11.880 3,000
15 16.000 65-118 14.570 15.250 14.125


Drillable Cement Retainer With Mechanical Setting For Well Completion 0
